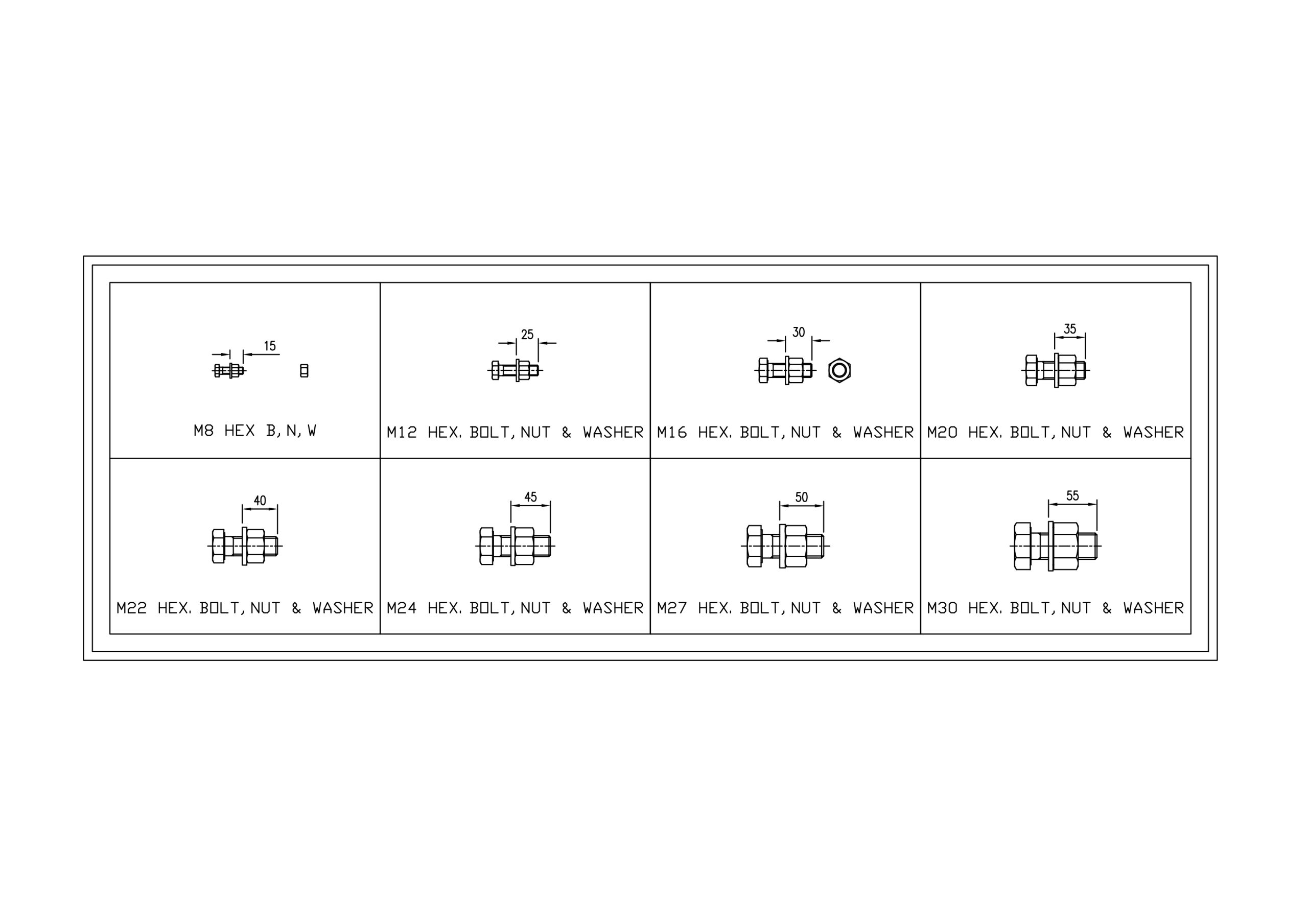

Free Hex Bolt Nut & Washer Cad Block
Hex bolt, nut , and washer area unit of mechanical fastener components used to connect two or more objects. Consisting of hex head bolts, nuts, and washers/plates, this set is commonly used in construction, machine assembly, and automotive to ensure strong, stable, and tight bonds.
Main Components:
Hex Bolt (Hexagonal Bolt): Threaded rod with a hexagonal head for turning using a wrench.
Nut: A hexagonal-shaped component with a threaded hole that functions as a bolt pair to lock the connection.
Washer (Ring): A thin, perforated plate placed between a nut and a surface. Its function is to distribute compressive loads, prevent surface damage, and often prevent the nut from loosening.
REQUEST A FILE FOR FREE
